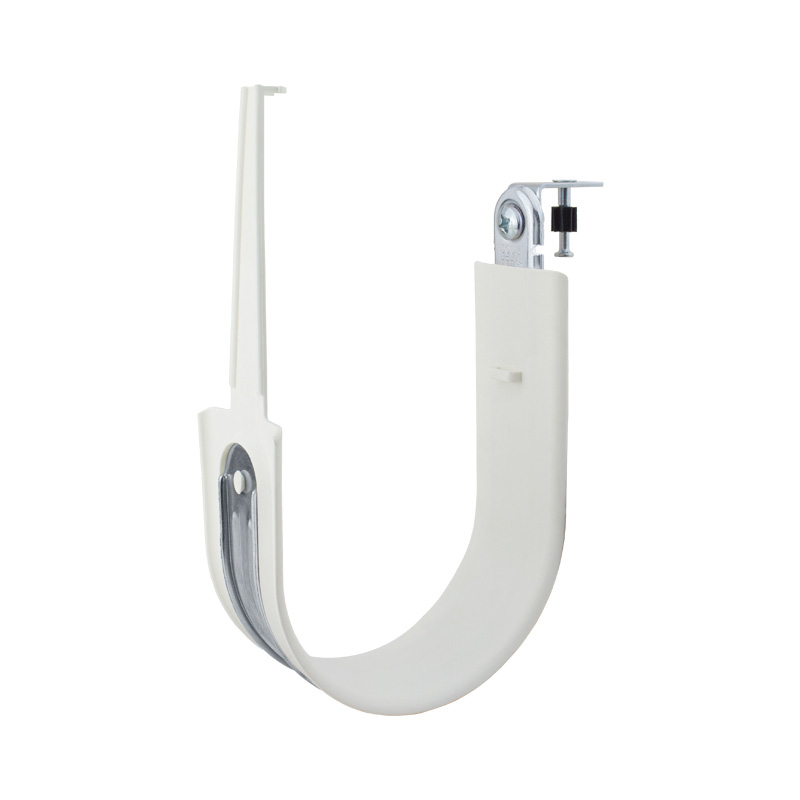

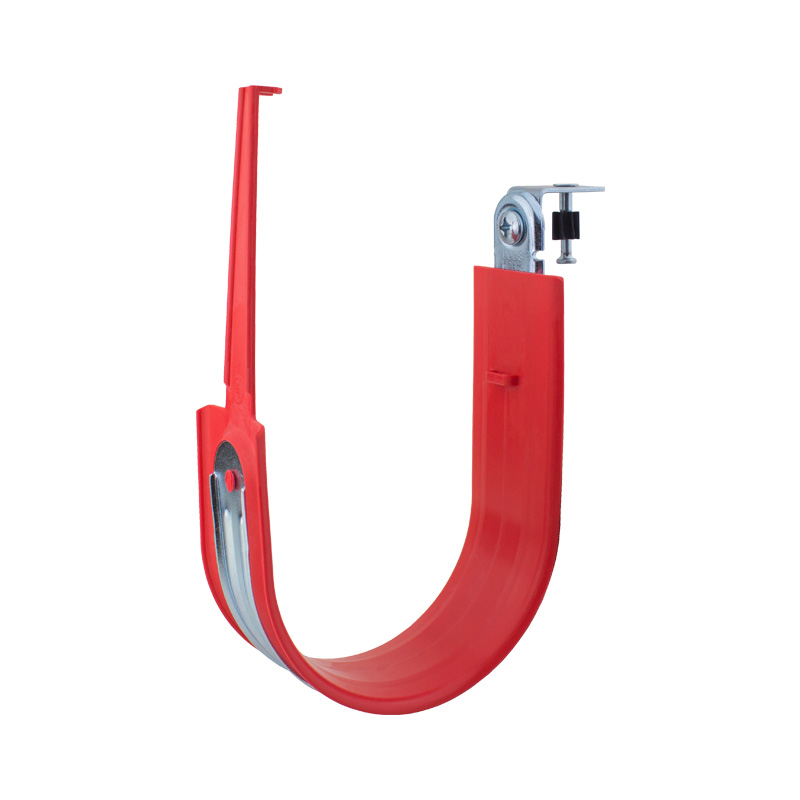

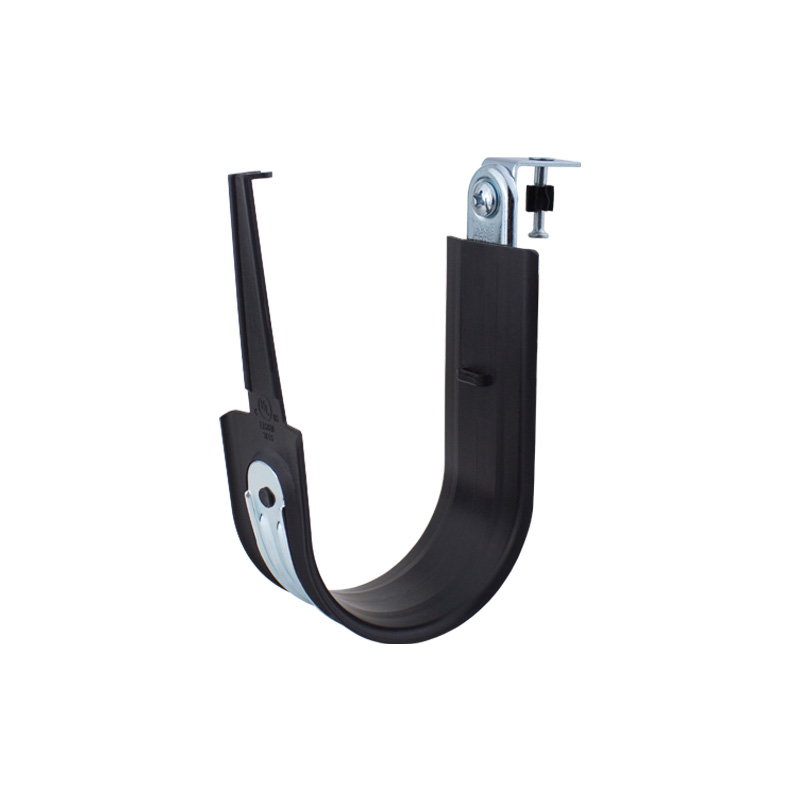

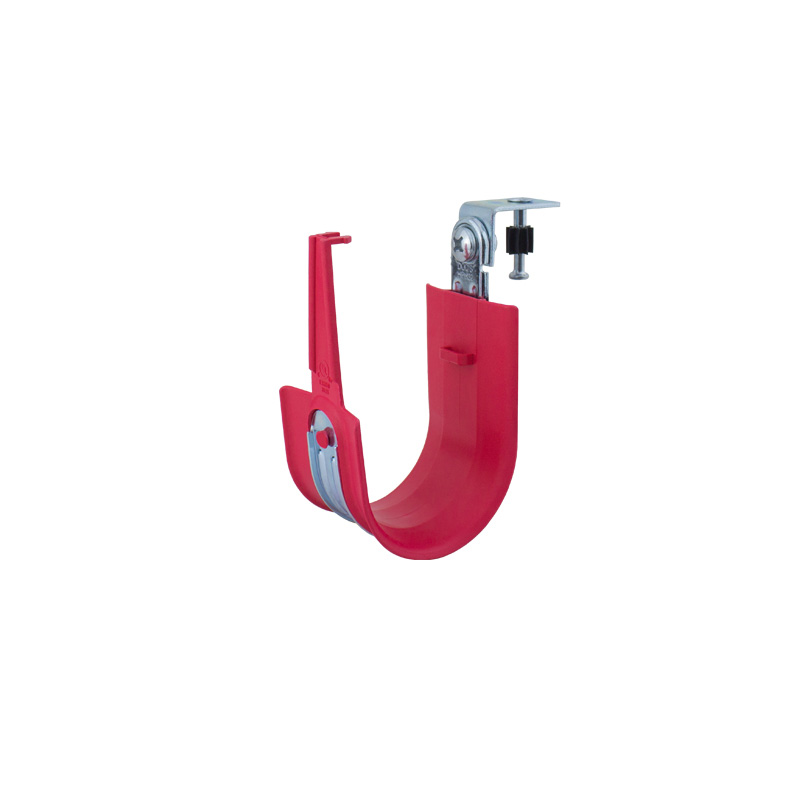

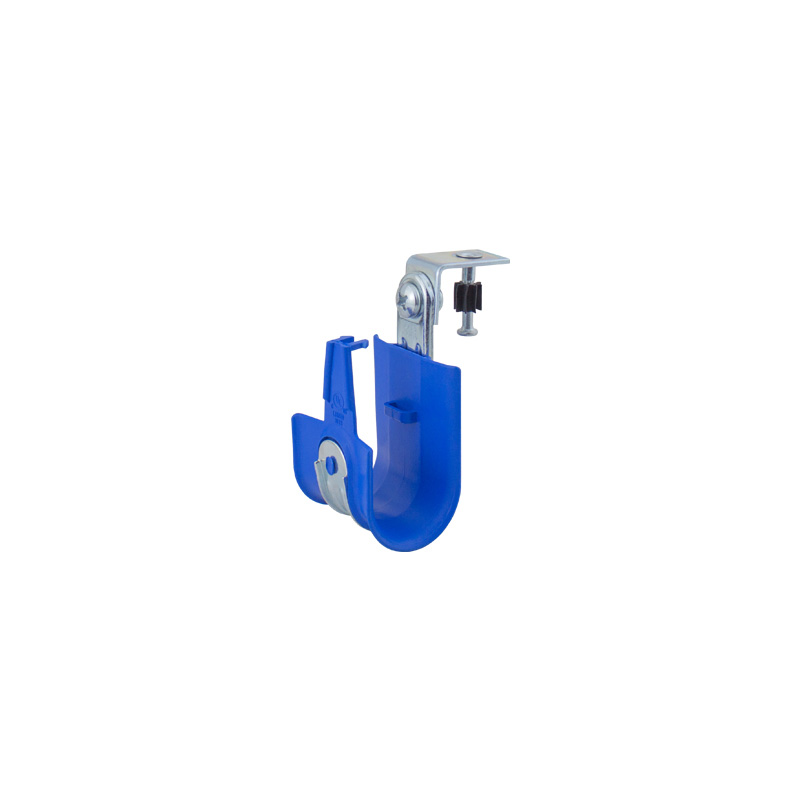

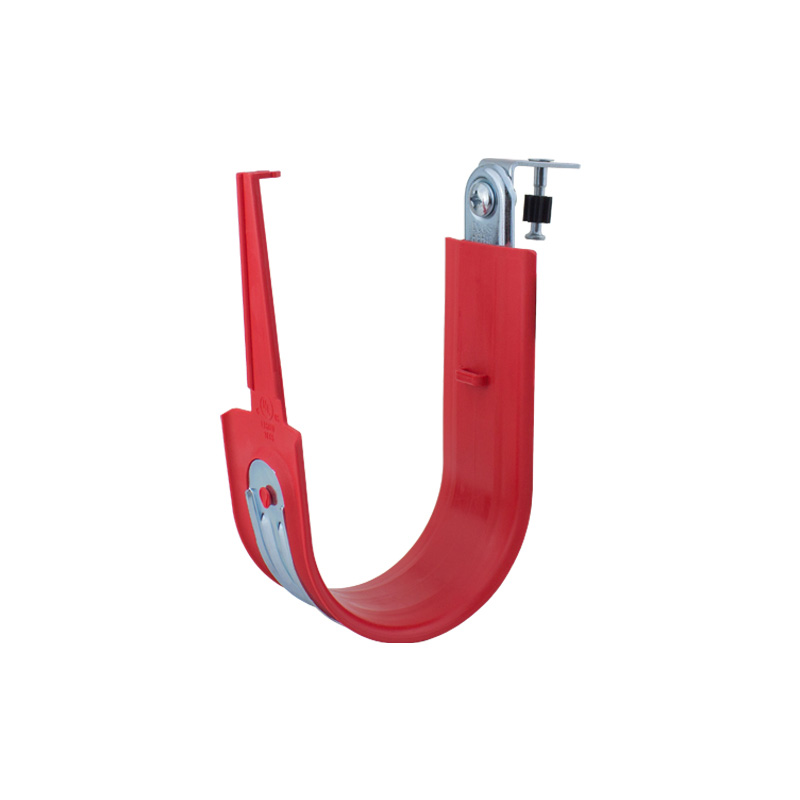

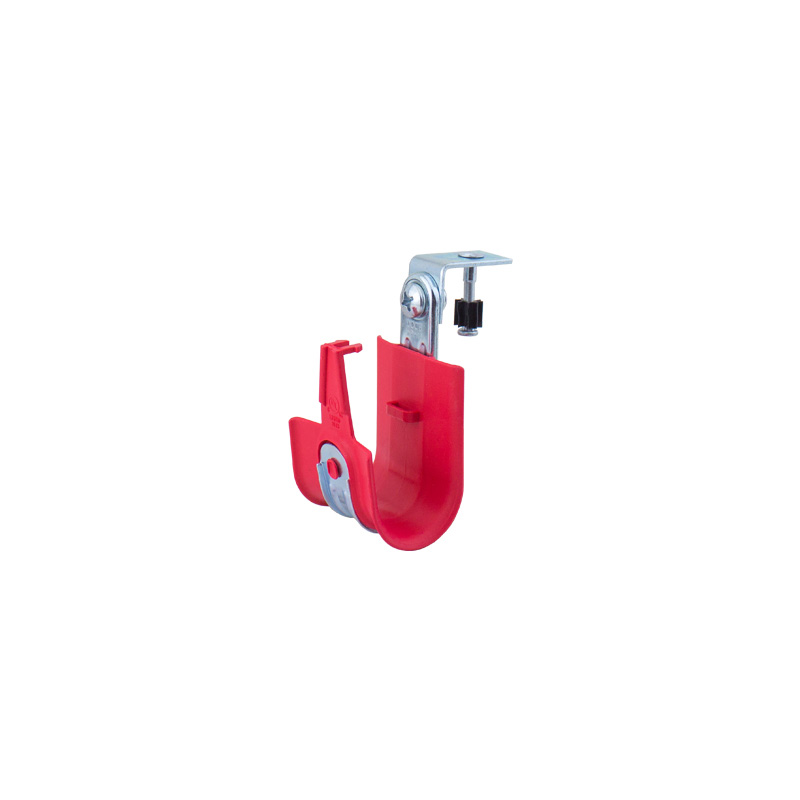

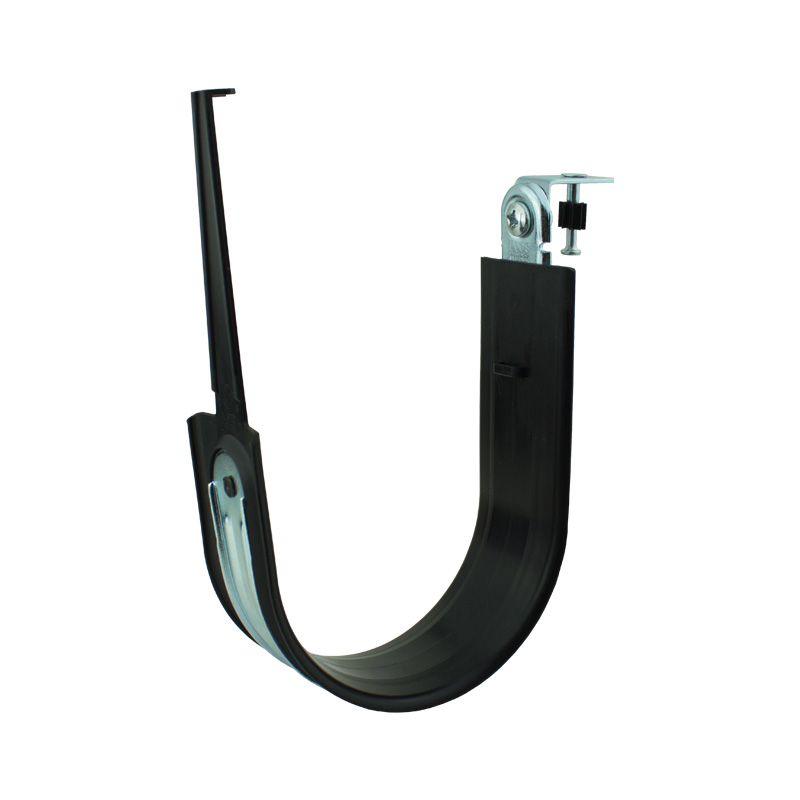

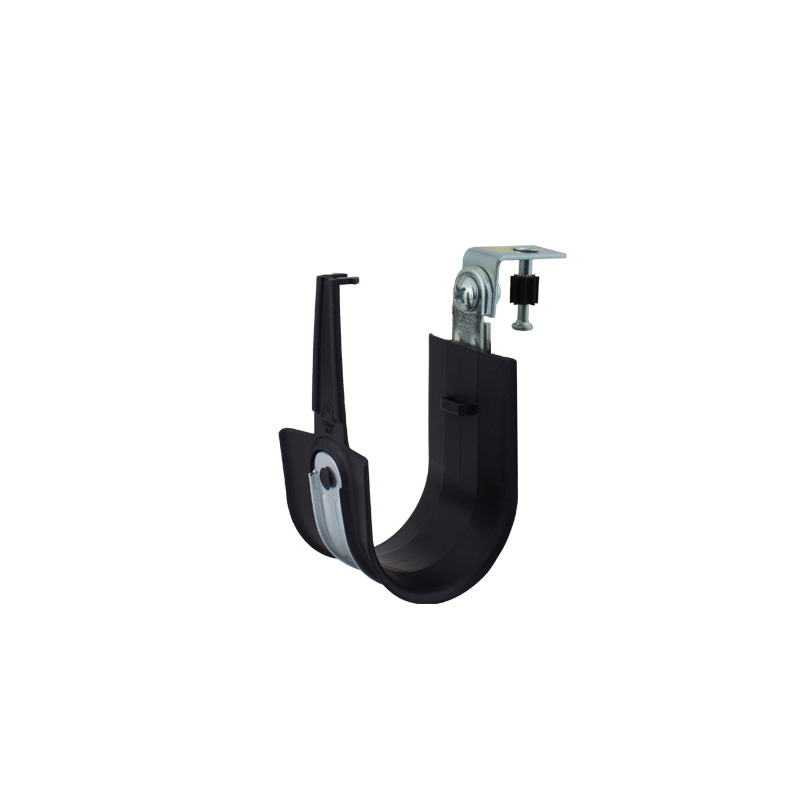

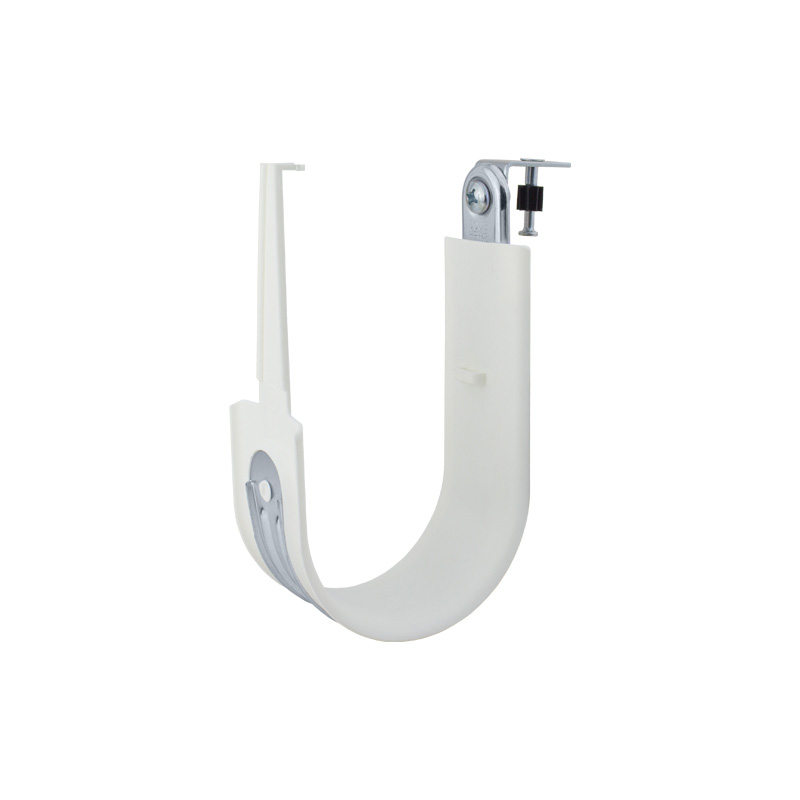

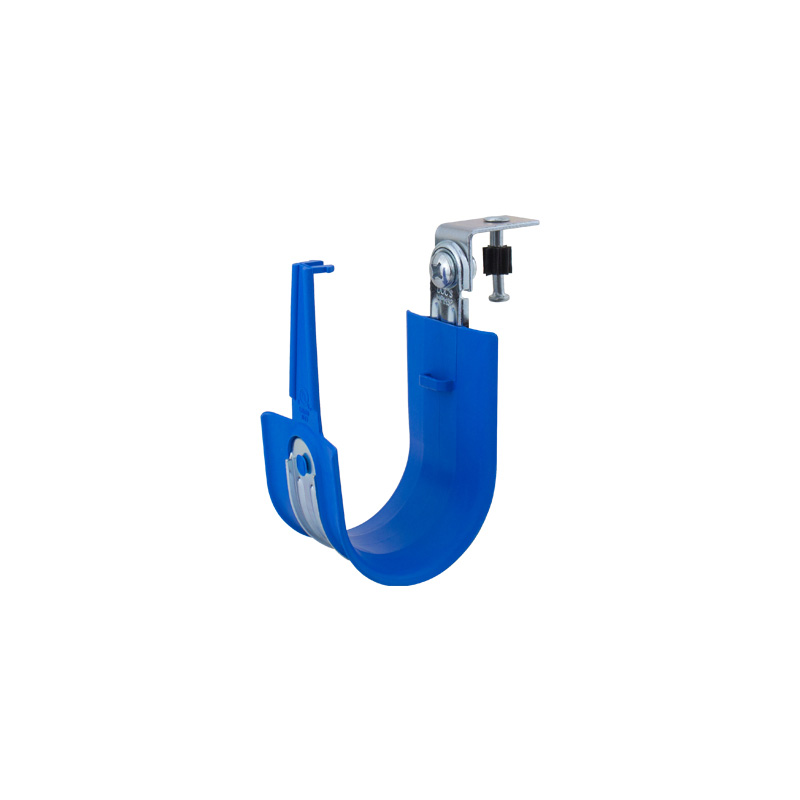

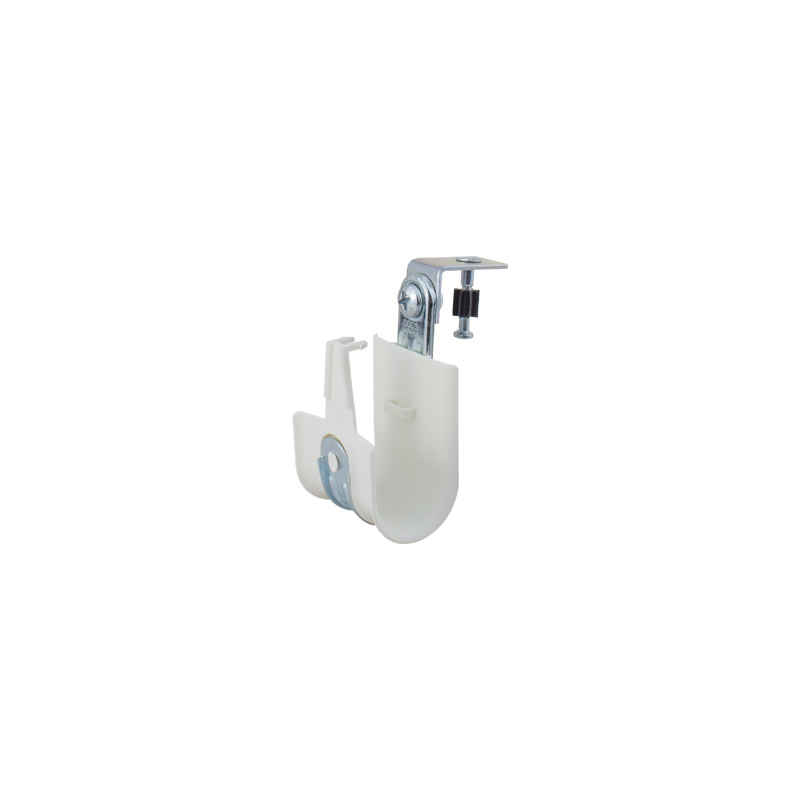

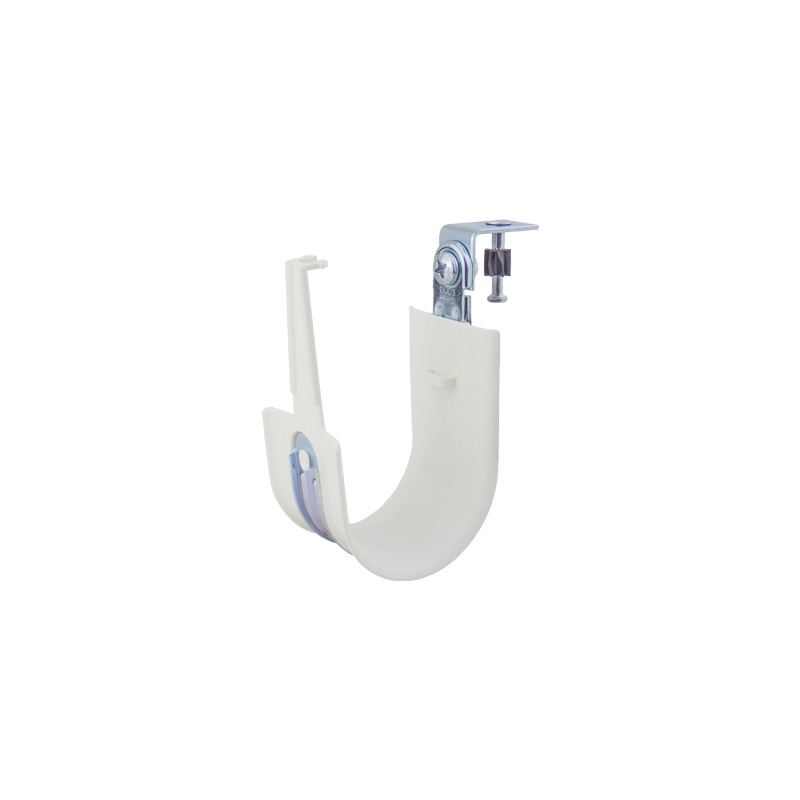

HPHACPA J Hook

Product Code:

HPH J-Hooks are specially designed to provide optimum support for high speed data cable, such as Cat 5e, Cat 6, Cat 6A, Cat 7 and fiber optic.

We use a hybrid of metal and plastic components to offer the best of both worlds. The plastic component provides a two inch wide base support with a slick and burr free surface. The metal component provides a strong backbone. The combined J-Hook is UL listed, RoHS compliant, TIA compliant and is suitable for installation in plenum and air handling spaces.

One of the most innovative features of the HPH J-Hook is the built-in snap-lock retainer. This is far superior to clumsy retainer wires, cable ties or Velcro straps that require additional on-site installation.

Bend radius is an important factor in any high speed data cable installation. HPH J-Hooks offer the largest bend radius available at an average of 3.57 inches.

Consult with the cable manufacturer for proper installation guidelines.

Where to buy? Submittal Request

Specs

CABLE CAPACITIES:Part No.AreaHookDiameterCAT 5eCapacityCAT 6CapacityCat 6aCapacityHPH16ACPA1.07 in21”201510HPH32ACPA3.97 in22”906035HPH48ACPA9.26 in23”20015080HPH64ACPA15.48 in24”330220140Cable capacity is calculated based on a 70% fill rate.Actual capacity may vary due to CAT cable outside diameter variances by type and manufacturer.Consult with the cable manufacturer to insure the correct cable outside diameter is being used during calculations.UL LOAD RATINGS – INCLUDES 3 TO 1 SAFETY FACTORS: Part NoUL Load RatingLBS.NHPH16ACPA2088.96HPH32ACPA2088.96HPH48ACPA2088.96HPH64ACPA2088.96PACKAGE INFORMATION:Part No.Package Qty.Package WeightUPC CodeHPH16ACPA254 lbs.707129861672HPH32ACPA255 lbs.707129861863HPH48ACPA2510 lbs.852668707438HPH64ACPA2512 lbs.707129861184

Documentation

HPH 2021 Catalog Installation Instructions HPH J Hook Capacity

product videos

Ready to Order?

Find a distributor near you, or request a submittal package for this product.

Where to buy? Submittal Request

Questions

Frequently Asked Questions

General

What is a J Hook?

A J Hook is a cable management product shaped like the letter "J". It secures and supports cables, prevents strain or damage during installation or use. They are used in structured cabling systems.

What is cable management?

Cable management is organizing and securing cables or wires to keep a clean workspace. It means cables are routed safely, no clutter, no tangles, no damage or interference.

Why use a J Hook for cable management?

J Hooks:

Secure high speed data cables like Cat 5e, 6, 6a, 7 and fiber optic cables.
Minimize strain and prevent structural damage to cables.
Are adaptable, easy to install and cost effective.

How does a J Hook differ from other cable management products?

Compared to other cable management products like trays, ladders or conduit systems, J Hooks are light-weight, versatile and easy to install. They are for low to medium cable volume and provide flexibility when routing cables.

What is a J Hook Tree?

A J Hook Tree is a multi level structure consisting of a series of J Hooks mounted to a vertical post. This is the most efficient way to organize a lot of cables in a small space.

Product Features and Specifications

What makes Doc’s Industries’ High Performance Hybrid J Hooks unique?

Doc’s Industries’ High Performance Hybrid J Hooks (HPH) are designed to support high speed data cables like Cat 5e, 6, 6a, 7 and fiber optic cables. Its latest design ensures maximum support and protection to the cables during installation and long term use.

How many cables can fit on a J Hook?

Cable capacity of a J Hook depends on the cable size, type and the model of the J Hook. Doc’s Industries’ J Hooks can hold multiple cables with enough space to prevent damage.

Do High Performance Hybrid J Hooks have a retaining strap?

Yes, all Doc’s Industries’ J Hooks have a retaining strap for extra security to keep your cables in place.

Are these J Hooks plenum rated?

Yes, Doc’s Industries’ High Performance Hybrid J Hooks are plenum rated for use in plenum spaces where fire safety is a concern.

Are these J Hooks TIA compliant?

Yes, they are TIA (Telecommunications Industry Association) compliant for modern structured cabling systems.

Installation and Usage

What are the mounting options for J Hooks?

Doc’s Industries has multiple mounting options for their J Hooks:

Beam Mounts
Ceiling Mounts
Wall Mounts
Wire Clips
Flange Clips

These options are for different spaces and applications.

Can I mount J Hooks to 12 gauge steel wire?

Yes, mounting J Hooks to 12 gauge steel wire is common. Doc’s Industries offers specific models that are designed to be mounted to 12 gauge steel wire. Always check with your local authority having jurisdiction (LAHJ) to confirm proper installation.

Can I mount J Hooks to flanges?

Yes. With flange clips, you can attach J Hooks to flanges for cable management in workspaces or industrial areas.

Who uses J Hooks?

J Hooks are used by:

IT Professionals
Cable Installers
Network Engineers

They are used for organizing and protecting data cables in offices, data centers and construction projects.

Data Cable Bend Sensitivity

Why are data cables bend sensitive?

Data cables have specific bend radius requirements to prevent signal loss and ensure data transmission. Bending cables beyond their recommended bend radius can cause signal loss, crosstalk and damage to the cable itself. It’s important to follow the manufacturer’s guidelines for bend radius to keep data cables intact and performing as designed.

How do I find the bend radius for data cables?

Bend radius for data cables is provided by the cable manufacturer and varies depending on the cable construction and specifications. It’s best to check the cable manufacturer’s documentation or specs to find the bend radius for the specific data cable you are using. Following these guidelines will ensure optimal performance and minimize cable failure.

What are the cable management guidelines?

Good cable management is key to a tidy and efficient network. Here are some guidelines:

Use cable management solutions, cable trays, racks and cable ties to secure and organize cables.
Label cables to identify and track connections.
Follow the recommended bend radius for data cables to prevent signal loss.
Don’t run data cables parallel to power cables to minimize electromagnetic interference.
Inspect and maintain cable connections regularly to ensure they are secure and damage free.

If you have more questions or need help with cable management or data cables, contact our support team at info@docsindustries.com or visit our website at www.docsindustries.com. We’re here to help you with professional advice and support to manage your cables and optimize your network.

Purchase and Availability

Where is Doc’s Industries based?

Doc’s Industries is based in Simi Valley, CA. Our team is dedicated to providing quality products and above and beyond service to customers globally.

Are these J Hooks in stock?

Yes, Doc’s Industries has High Performance Hybrid J Hooks in stock. For availability and shipping details please contact our sales team.

Do you supply to wholesale and retail customers?

Doc’s Industries services wholesale accounts. Please use the “where to buy” function on our website to be connected to the nearest distributor.
